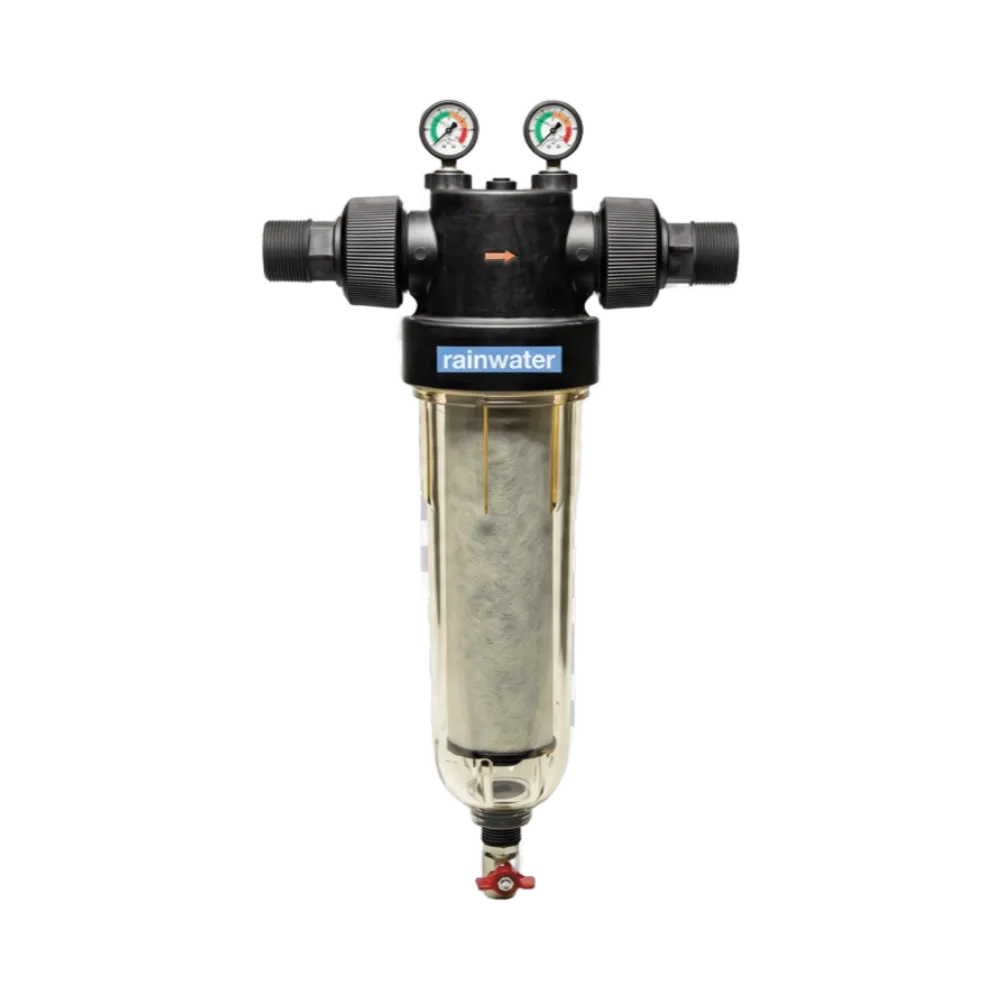

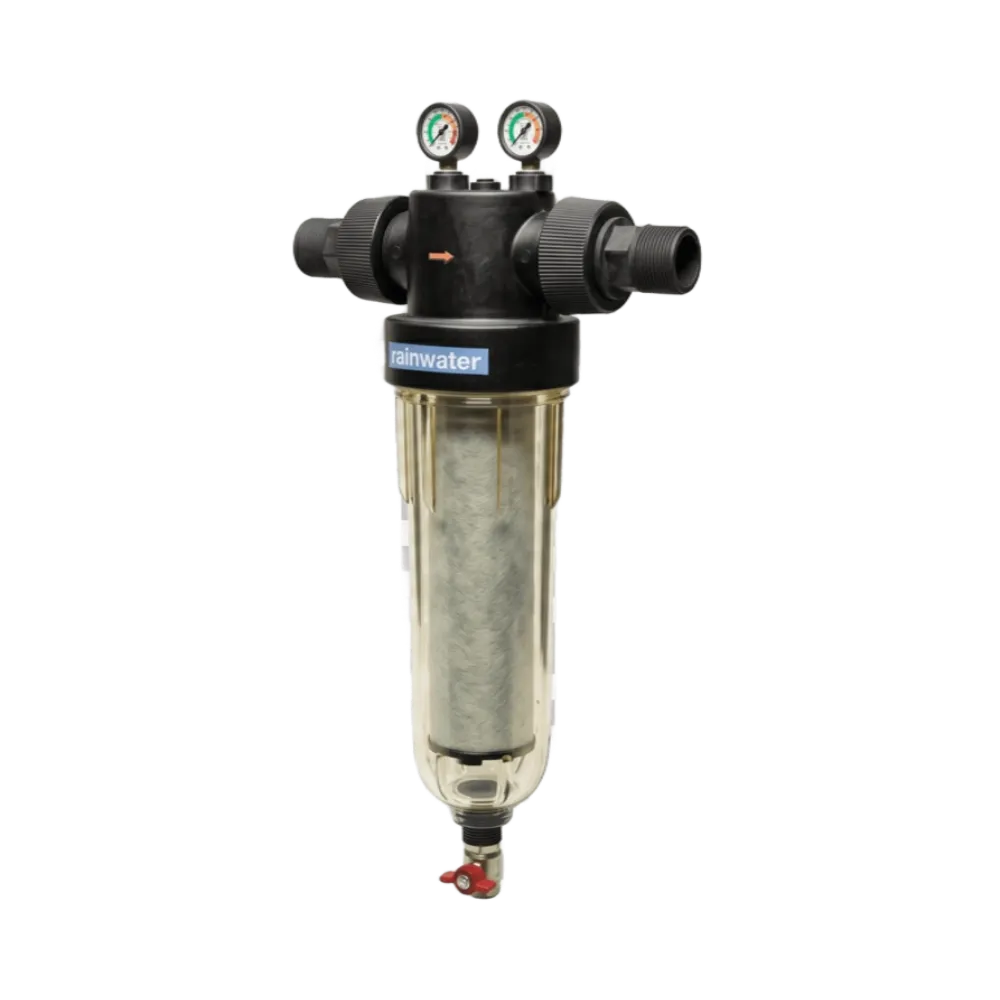

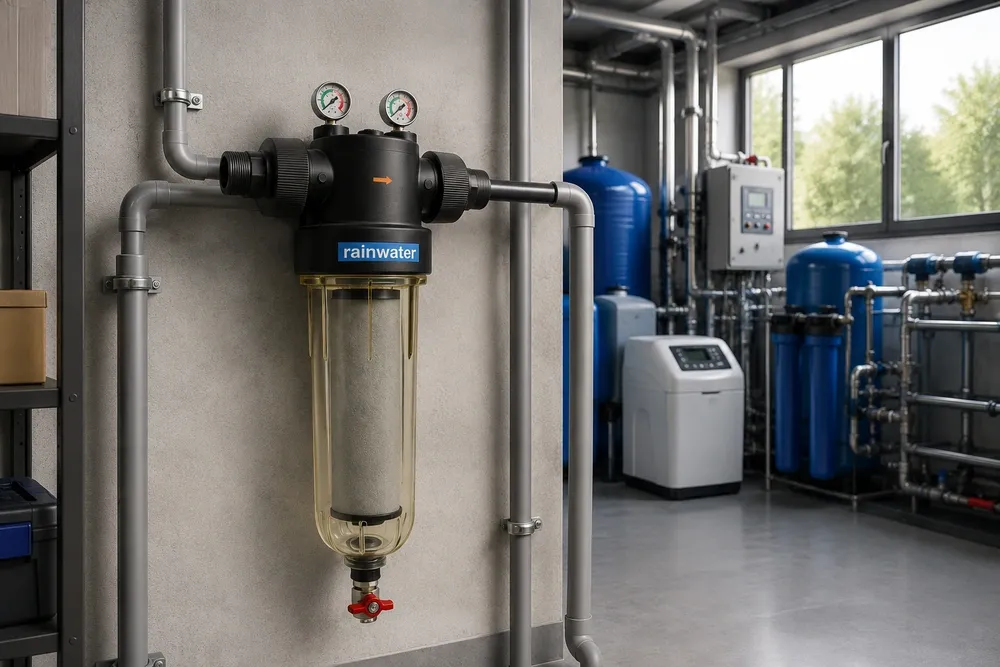

NW 280 Sediment Pre-Filter
A superior protective shield that safeguards your advanced purification systems, with a large filtration surface and centrifugal technology.
Technical specifications
View all- Filter precision
- 25 µm
- Filtration surface
- 530 cm²
- Flow rate
- 7 m³/hour
- Connection size
- 1”
Request received
Our experts will call you.
Free installation
2+8 Year Warranty
24/7 Technical Support
The critical first barrier for sensitive systems
Rainwater NW 280 is manufactured with Made in Belgium engineering to physically capture sand, silt, rust, mud and suspended solids carried in water, so that the rest of the system runs more stably and lasts longer. Its special centrifugal (cyclonic) technology separates coarse particles by centrifugal force, directs them to the bottom of the bowl and prevents premature clogging of the filter. With a high flow capacity of 7 m³ per hour, it delivers uninterrupted pre-treatment performance in commercial and industrial processes.
A critical front-line barrier
It is the most reliable line of defence, preventing softening, R/O, UV and process equipment from being damaged by particles and clogging prematurely.
High-flow, uninterrupted performance
With an average flow capacity of 7 m³/hour, it provides powerful, stable filtration without reducing water pressure in your plumbing.
Centrifugal pre-filtration
Its advanced cyclonic design separates heavy sediment before it reaches the filter element, minimising operating and maintenance costs.
Optimum filtration surface
The extended 530 cm² surface area maximises dirt-holding capacity and lengthens filter replacement intervals.
Highlights

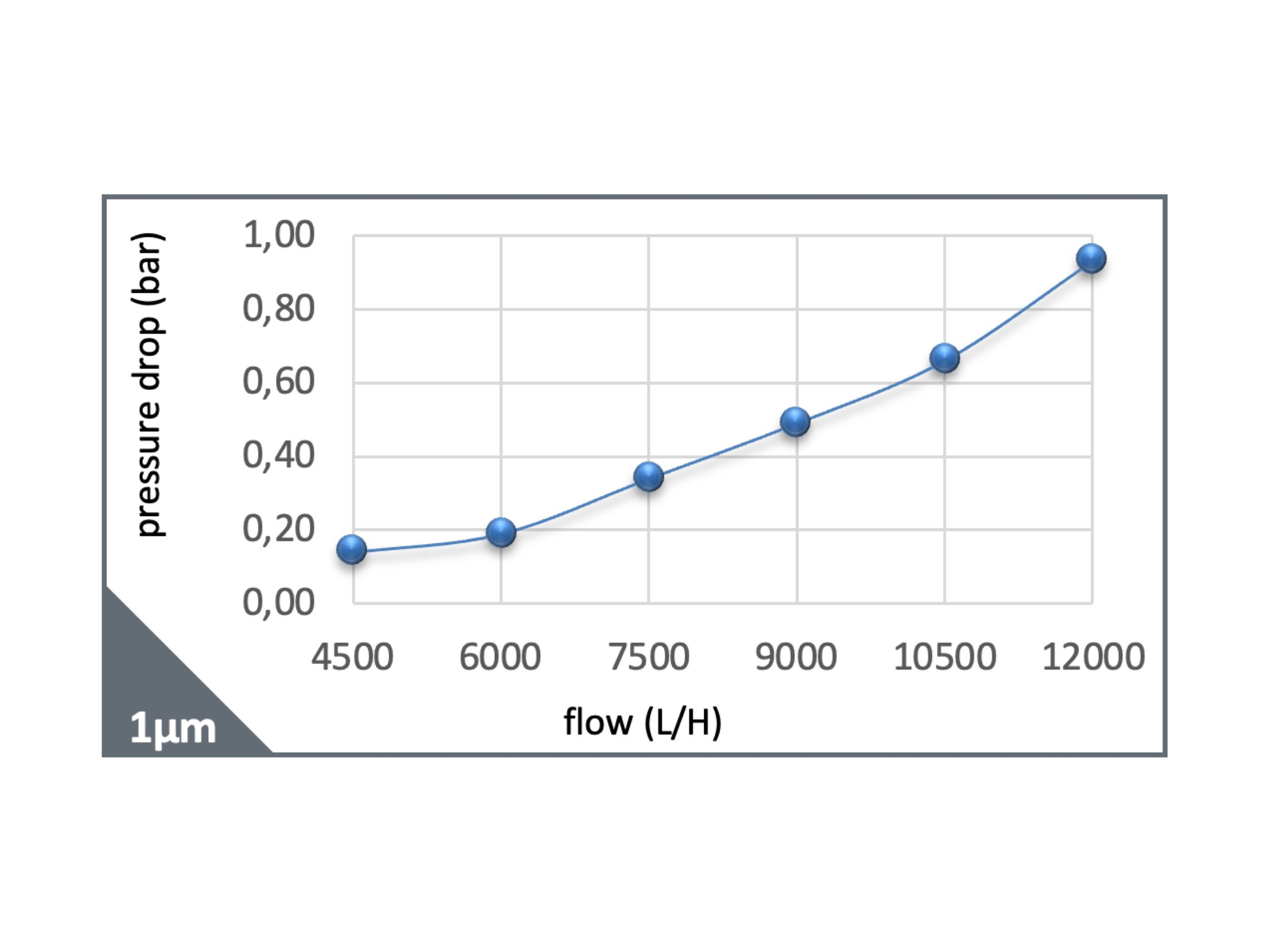

Pressure loss chart
Pressure loss (bar) by flow rate; shows how much pressure the filter loses at each flow rate.

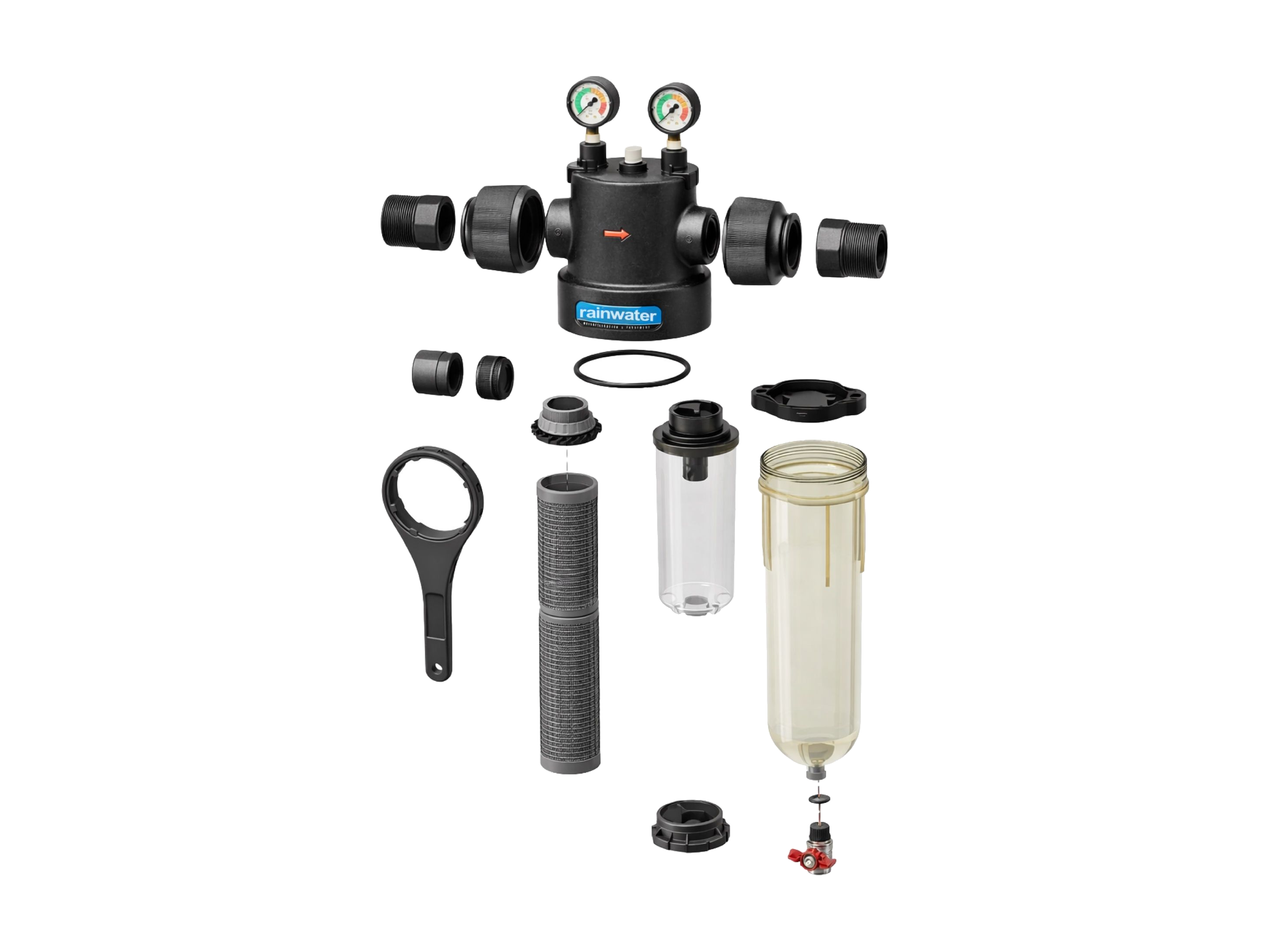

Easy maintenance
The bowl and filter element can be removed for easy cleaning or replacement.
NW 280 Sediment Pre-Filter
Adding value to your life with certification to international standards
The confidence of flawless quality: freshness and peace of mind for everyday life.
CE certificate
FDA certificate
Water Quality
TÜV Cert ISO 14001
NSF certificate- TÜV Cert ISO 9001
Düzen Norwest
Hacettepe University
Istanbul Technical University
Our systems use PARKER – LIQUIFIT – LEGRIS brand components and comply with the US Food and Drug Administration (FDA) regulations, CFR 21.
Product description
Sand, silt, rust and sediment carried in mains, well or rain water wear out plumbing, pumps and downstream purification units. The NW 280 is a sediment pre-filter fitted at the water inlet that mechanically captures these solid particles.
Who is the NW 280 suitable for?
For building inlets, hotels, restaurants and industrial lines. With a 1” connection size, it provides an average flow rate of 7 m³/hour.
How does it work?
As water passes through the filter element, the 25-micron pores let the water through and hold back larger particles; this is a purely physical, not chemical, filtration. The multi-layer filter structure retains dirt better even under high sediment loads, and the large filtration surface provides high flow and low pressure loss.
A sediment filter does not on its own remove dissolved chemicals such as chlorine, or microorganisms; for this reason, it is used as a pre-filter ahead of softening, activated carbon, reverse osmosis and UV systems, protecting them.
Technical data
- Connection size: 1”
- Average flow rate: 7 m³/hour
- Filter precision: 25 µm
- Filtration surface: 530 cm²
- Operating pressure: 10 bar (maximum 16 bar)
- Maximum operating temperature: 50 °C

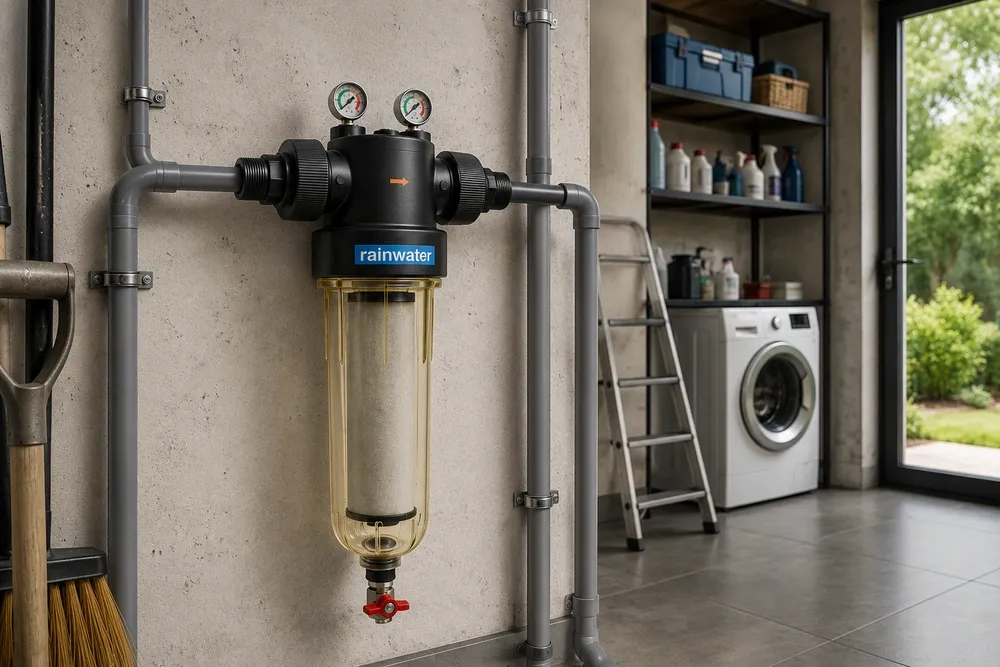

Installation, maintenance and warranty
Installed on the water inlet line. The filter element can be cleaned or replaced; you can tell the filter is full when the pressure difference increases and the flow drops. The product is covered by a 2+8 year warranty.
Technical specifications
Capacity
- Average flow rate
- 7 m³/hour
Purification
- Standard filter precision
- 25 µm
- Filtration surface
- 530 cm²
- Country of manufacture
- Belgium
Power and size
- Weight
- 2.2 kg
- Connection size
- 1”
- Operating pressure
- 10 bar
- Max. operating pressure
- 16 bar
- Max. operating temperature
- 50 °C
General
- Brand
- Rainwater
- Model
- NW 280
- Warranty
- 2+8 Years
- Area of use
- Building Inlets, Hotels, Restaurants, Industrial Lines
- Distributor
- Rainwater Dış Tic. San. ve Tic. A.Ş.
Other sediment pre-filtration
Let's talk about NW 280
Our water treatment experts are here for you.
Request received
Our experts will call you.
Frequently asked questions
What does the NW 280 do?
It mechanically captures solid particles in the water such as sand, silt, rust and sediment, protecting the plumbing and downstream purification units.
Does the NW 280 remove chlorine or bacteria?
No. A sediment filter only captures solid particles; activated carbon is needed for chlorine, and UV or reverse osmosis for microorganisms.
What are its flow rate and connection size?
With a 1” connection size, it provides an average flow rate of 7 m³/hour.
When should the filter be replaced?
As the filter fills up, the pressure difference between inlet and outlet increases and the flow drops; this indicates that it is time to clean or replace it.
How long is the warranty?
It is covered by a 2+8 year warranty.
