SL 160 Sediment Pre-Filter
Compact design, centrifugal technology and uninterrupted protection for your home's entire water system.
Technical specifications
View all- Filtration precision
- 25 µm
- Filtration surface
- 170 cm²
- Flow rate
- 3 m³/h
- Connection size
- 3/4”
Request received
Our experts will call you.
Free installation
2+8 Year Warranty
24/7 Technical Support
Superior protection for domestic use
The Rainwater SL 160 is built with Made in Belgium engineering to meet domestic water filtration needs to the highest quality standards. Its special centrifugal filtration system mechanically traps solid particles that may be present in water, such as sand, mud, dust and rust. This technology directs larger particles to the lower part of the filter bowl, extending the life of the filter element. Made from high-quality synthetic materials fully suitable for contact with drinking water and food, the SL 160 ensures the trouble-free operation of the softening, reverse osmosis (R/O) and UV systems in your home.
Centrifugal pre-filtration
Its advanced cyclonic design separates coarse sediment before it reaches the filter, so it needs less maintenance and offers a long service life.
Reliable food-safe material
Its premium synthetic housing is 100% compatible with drinking water and food applications.
Compact yet powerful performance
Despite its compact design, which is easy to install in tight spaces, its flow capacity of 3 m³/h ensures uninterrupted flow without lowering your home's water pressure.
Easy monitoring through the transparent bowl
You can check how dirty your system is at any time through the transparent housing, without opening the unit or shutting off the water.
Highlights

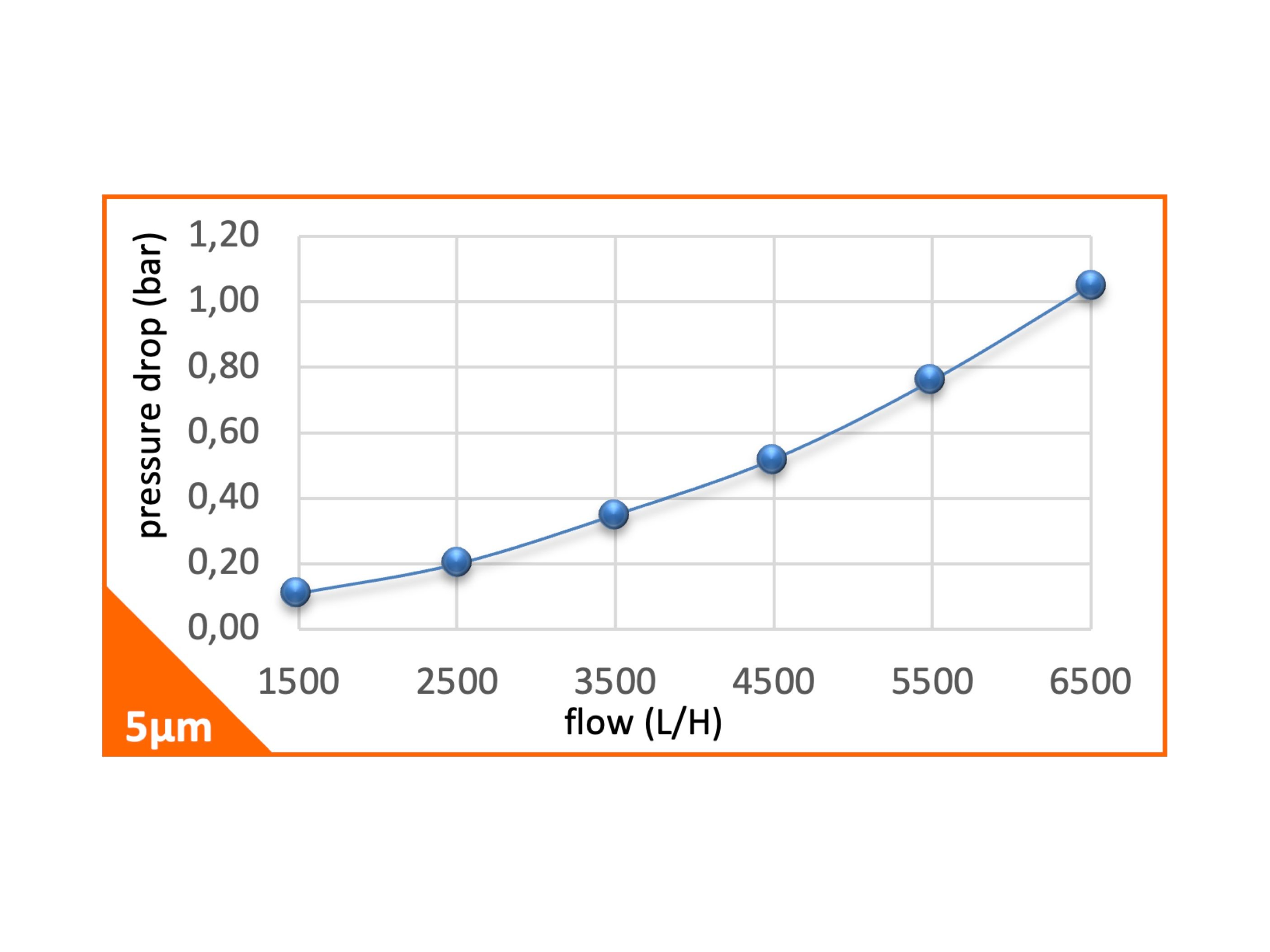

Pressure loss chart
Pressure loss (bar) by flow rate; shows how much pressure loss the filter causes at each flow rate.
Easy maintenance
The bowl and filter element can be removed for easy cleaning or replacement.
SL 160 Sediment Pre-Filter
Adding value to your life with certification to international standards
The confidence of flawless quality: freshness and peace of mind for everyday life.
CE certificate
FDA certificate
Water Quality
TÜV Cert ISO 14001
NSF certificate- TÜV Cert ISO 9001
Düzen Norwest
Hacettepe University
Istanbul Technical University
Our systems use PARKER – LIQUIFIT – LEGRIS brand components and comply with the US Food and Drug Administration (FDA) regulations, CFR 21.
Product description
Sand, mud, rust and sediment carried in mains, well or rainwater wear down plumbing, pumps and downstream purification equipment. The SL 160 is a sediment pre-filter fitted at the water inlet that mechanically traps these solid particles.
Who is the SL 160 for?
For homes, building inlets and well/rainwater systems. With a 3/4” connection, it provides an average flow rate of 3 m³/h.
How does it work?
As water passes through the filter element, the 25-micron pores let the water through and trap larger particles; this is an entirely physical, not chemical, straining process. Thanks to the transparent bowl, the filter's condition can be seen at any time; the centrifugal design directs sediment, sand and suspended particles to the lower part of the bowl.
On its own, a sediment filter does not remove dissolved chemicals such as chlorine, or microorganisms; for that, it is used as a pre-filter ahead of softening, activated carbon, reverse osmosis and UV systems, protecting them.
Technical data
- Connection size: 3/4”
- Average flow rate: 3 m³/h
- Filtration precision: 25 µm
- Filtration surface: 170 cm²
- Operating pressure: 8 bar (max. 12 bar)
- Maximum operating temperature: 50 °C
Installation, maintenance and warranty
It is installed on the water inlet line. The filter element can be cleaned or replaced; you can tell the filter is full when the pressure difference increases and the flow drops. The product is covered by a 2+8 year warranty.
Technical specifications
Capacity
- Average flow rate
- 3 m³/h
Purification
- Standard filtration precision
- 25 µm
- Filtration surface
- 170 cm²
- Country of manufacture
- Belgium
Power and size
- Weight
- 0.68 kg
- Connection size
- 3/4”
- Operating pressure
- 8 bar
- Max. operating pressure
- 12 bar
- Max. operating temperature
- 50 °C
General
- Brand
- Rainwater
- Model
- SL 160
- Warranty
- 2+8 Years
- Area of use
- Homes, Building Inlets, Well/Rainwater Filtration and Domestic Pre-Treatment
- Distributor
- Rainwater Dış Tic. San. ve Tic. A.Ş.
Other sediment pre-filtration
Let's talk about SL 160
Our water treatment experts are here for you.
Request received
Our experts will call you.
Frequently asked questions
What does the SL 160 do?
It mechanically traps solid particles in the water such as sand, mud, rust and sediment, protecting the plumbing and downstream purification equipment.
Does the SL 160 remove chlorine or bacteria?
No. A sediment filter only traps solid particles; chlorine requires activated carbon, and microorganisms require UV or reverse osmosis.
What are its flow rate and connection size?
With a 3/4” connection, it provides an average flow rate of 3 m³/h.
When should the filter be replaced?
As the filter fills up, the pressure difference between inlet and outlet increases and the flow drops; this indicates that it is time for cleaning or replacement.
How long is the warranty?
It is covered by a 2+8 year warranty.
